Cable clips for fiber optic cables

D-shaped brackets

Product Description: Iron D-type brackets are composite metal components that combine the properties of D-ring connections with the functions of bracket supports. They are primarily used for securing equipment and lines in the power, telecommunications, and utility sectors. Their integrat...

Send request

Description

marker

Product Description:

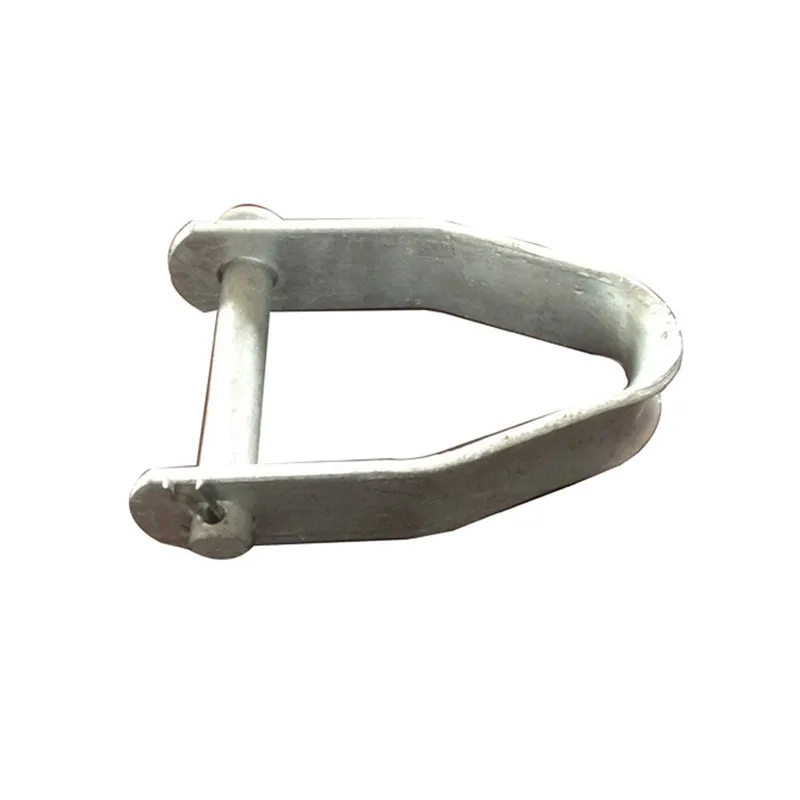

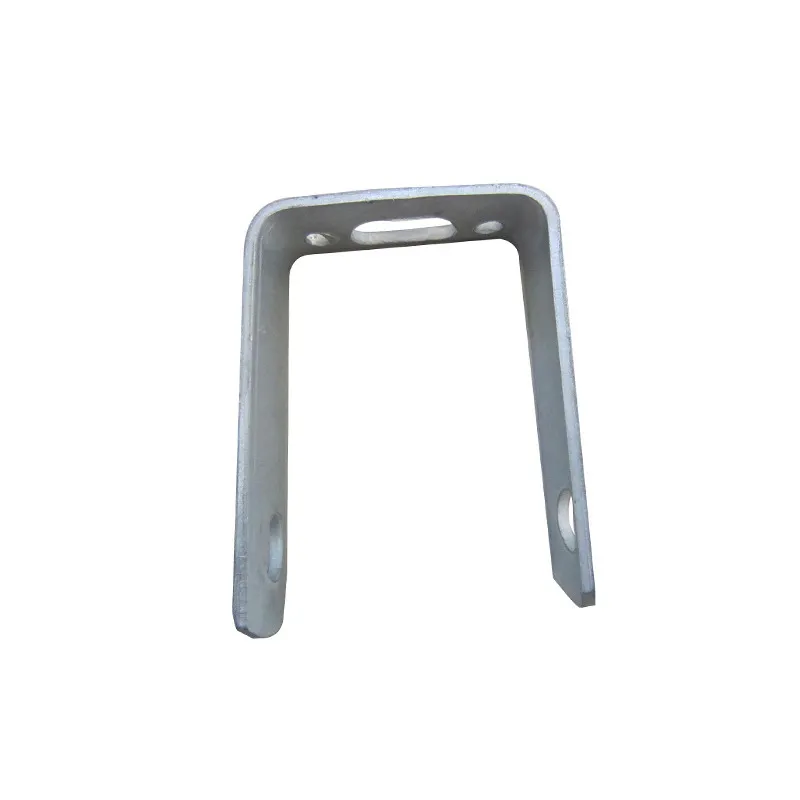

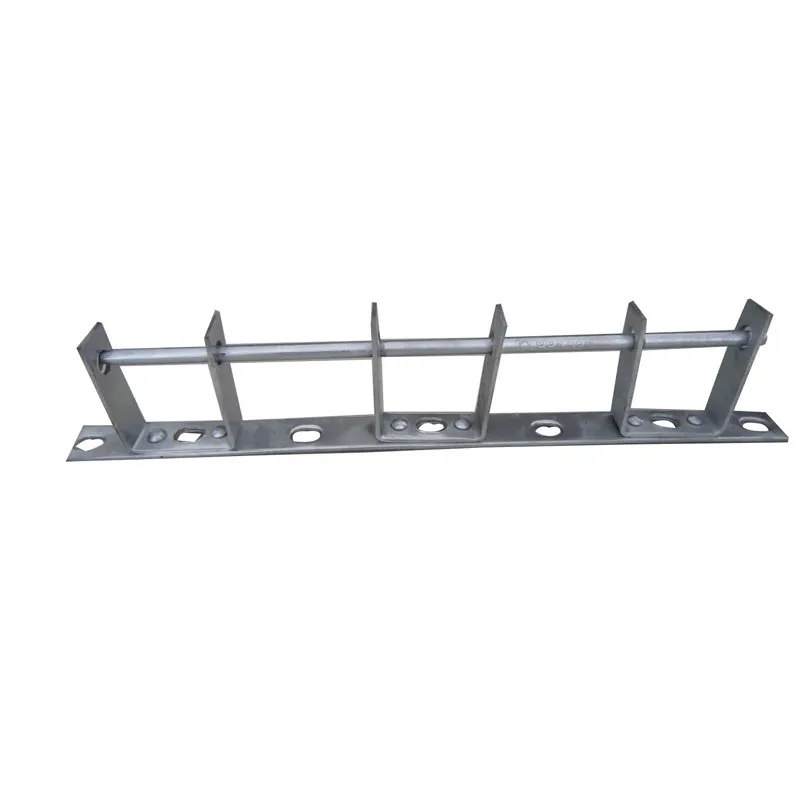

Iron D-type brackets are composite metal components that combine the properties of D-ring connections with the functions of bracket supports. They are primarily used for securing equipment and lines in the power, telecommunications, and utility sectors. Their integrated "D-ring connection + bracket support" design ensures a stable connection between supports (such as towers or walls) and cables/equipment. This design combines the flexibility of connection with the reliability of support.

Main materials and processes:

Main Materials:

Made from Q235 low-carbon steel or Q345 alloy steel. Low-carbon steel is suitable for standard loads (e.g., low-voltage lines, lightweight equipment), offering moderate cost and easy processing. Alloy steel is used for high-voltage lines and heavy-duty equipment (e.g., 110 kV transmission accessories, large telecommunication cabinets), with a tensile strength ≥500 MPa to withstand significant external forces.

Anti-Corrosion Treatment:

The core treatment involves hot-dip galvanizing with a zinc layer ≥90 μm, resistant to rain, salt spray, and industrial dust outdoors, ensuring a service life of 15–25 years. For highly corrosive environments (e.g., coastal areas, chemical zones), a dual-protection system of "hot-dip galvanizing + electrostatic powder coating" can be customized. The coating thickness of 0.8–1.2 mm further enhances rust and aging resistance.

Manufacturing Process:

Produced using CNC cutting, bending, and welding (partially forged as a single piece). Welded joints undergo non-destructive testing to ensure no cold welds. Reinforcing ribs are added at the junction of the D-ring and main bracket to improve overall structural strength. Connection holes are precision-drilled and chamfered to prevent bolt scratches during installation, ensuring smooth assembly.
